Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface

Merknaam:	Genyu
MOQ:	10 stuks
Prijs:	$5.70/pieces 10-999 pieces

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Guangdong, China

Type:

Tft

Weergavegrootte:

3,5 inch TFT LCD

Type leverancier:

fabrikant

Achtergrondverlichtingstype:

Oplossing:

/, 480x320 TFT -display

helderheid:

Bedrijfstemperatuur:

Merk:

Type weergave:

Montagetype:

Schermgrootte:

Communicatie -interface:

Driver IC:

Maat:

De Vertoning van 3,5 Duimtft

Rijd IC:

ST7796

modulegrootte:

54.48x84.71x3.2 mm

Actief gebied:

48.96x73,44 mm

Voedingsspanning:

2.8V

Interface:

16/18bit Sparallel, SPI -interface

Item:

3,5 inch TFT LCD Touchscreen 480x320

Toepassing:

slimme apparaten

Aanraakpaneel:

Weerstand

Markeren:

ST7796 TFT LCD Touch Screen

SPI Interface TFT LCD Touch Screen

3.5 inch TFT LCD Touch Screen

Productbeschrijving

3.5 inch tft lcd touch screen 480x320 tft screen Drive IC ST7796 40 pin 8/16 Bit Parallel SPI lcd display 3.5 TFT LCD

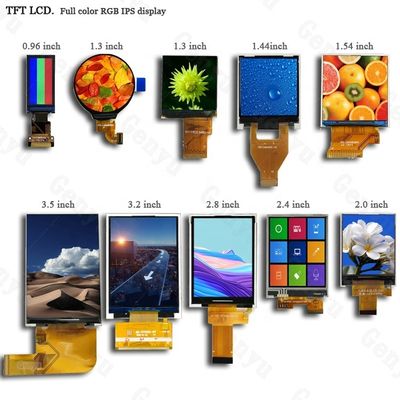

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 0

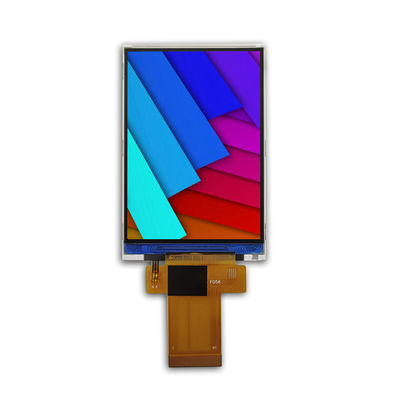

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 1

Product Description

Brand Name: Genyu

Model Number: GY-TFT035F056 (with )

1. Features

TFT Size	3.5 inch	Interface	6bit/8bit/SPI
Display Type	Full color TFT LCD display	Viewing Angle	12"00
Resolution	320RGBx480Pixel	Drive IC	ST7796/ILI9488
Luminance	250 cd/m2	Voltage	2.8V
Operating Tem.	-20℃~+70℃	Connection method	40 PIN
Storage Tem.	-30℃~+80℃	LCD Size	54.4 x 84.7 x 3.2 mm
Backlight	6 LED/90mA	Active Area	48.9 x 73.4 mm

Full color 3.5 inch tft lcd touch screen 480x320 ST7796 40 pin 8/16 Bit Parallel SPI lcd display 3.5 TFT LCD

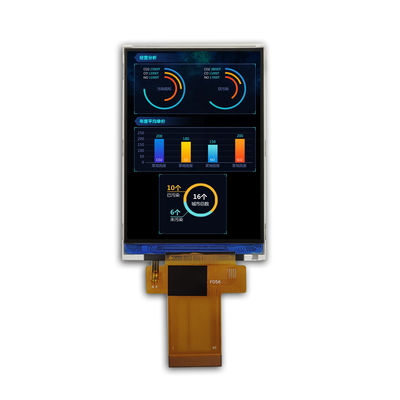

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 2

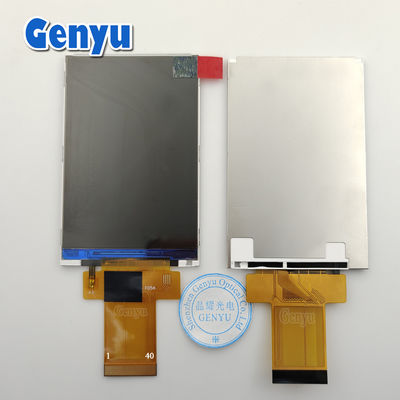

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 3

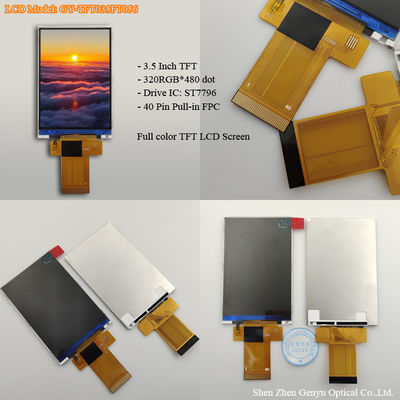

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 4

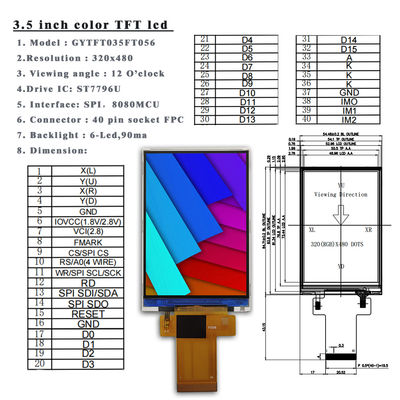

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 5

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 6

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 7

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 8

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 9

(320xRGBx480) 3.5 inch tft lcd Module Video With Resistance Touch Pane

Packaging & Shipping

Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....

Delivery
Items will be shipped within 3 working days on payment received.

By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.

Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 10

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 11
